Fiberglass Pool Installation in Kansas City
One contractor from dig to deck — 40+ fiberglass pool models, excavated, set, plumbed, and decked by the same crew.
A Single Crew, From First Shovel to First Swim — No Handoff, No Second Sub, No Gap
Fiberglass pool installation is the full process of turning raw backyard ground into a finished, water-filled, deck-wrapped pool ready to swim in. On a typical Kansas City project, that means 80 to 120 cubic yards of clay excavation, a one-piece factory-built shell craned into place, plumbing and equipment installed to manufacturer spec, and a concrete deck poured around the shell — all in 3 to 6 weeks.
Most pool builders in the KC metro handle the shell and then hand the deck off to a separate concrete sub. Kansas City Concrete Contractors does both. Here is how the four phases actually break down:
Consultation & Design
Free on-site walk, scale drawings, model shortlist from the 40+ shell catalog, HOA and city permit filing, and contract sign-off.
Excavation & Shell Set
80–120 cubic yards of KC clay excavated and hauled, compacted gravel base leveled, shell craned in and laser-leveled to 1/8 inch.
Plumbing & Electrical
Suction, return, skimmer, and main drain lines trenched to the pad. Pump, filter, sanitizer, and heater mounted, pressure-tested, and bonded by a licensed electrician.
Deck Pour & Startup
Same crew forms and pours the concrete deck — broom, stamped, stained, or exposed aggregate — then fills, balances, and orients the owner.
A pool-only builder can drop a shell and plumb it. A concrete-only contractor can pour a deck around whatever is already there. The gap between those two specialties is where most Kansas City pool projects lose time, money, and warranty coverage.
Our entire model exists to close that gap — by being both companies at the same time, on the same crew, under the same contract.
One Contractor for Shell and Deck. One Contract. One Warranty.
The traditional pool construction model splits the shell and the concrete deck between two separate contractors. The pool builder sets the shell, plumbs it, and leaves. Weeks later a concrete sub arrives to pour a deck around a shell that has already been sitting in the ground through a rainstorm or two, with backfill that may have settled unevenly around the edges. When that deck cracks eighteen months later, the pool builder blames the concrete sub and the concrete sub blames the pool builder — while you write the repair check. Our single-source model eliminates that handoff by keeping the same crew on site from excavation through finished deck.
Rectangular Family Pools
Clean lines, symmetrical shells, and the silhouette most Kansas City homeowners picture when they first start shopping for a pool. Rectangular shells work with modern architecture and traditional landscaping alike, accept every finish in the catalog, and are the most efficient use of square footage in a fenced backyard. This is the category that covers the Kisol Slim line for narrow urban lots, the Premium line with eight length options for anything in between, and the Exclusive Pools Spazio — the largest rectangular shell we install.
- → Evolution (KS 600-800) · 11.2-13.8 ft wide · 3,600-6,200 gal — Clean modern rectangular family pool
- → Slim (KS 330-800) · 6.6-9.9 ft wide · 1,200-6,100 gal — Narrow lot champion
- → Slim Spa (KS 500-800) · 7.2-9.9 ft wide · 2,300-6,100 gal — Narrow shell with integrated spa
- → New Fiori (Exclusive) · — · 1,300-4,400 gal — Rectangular modern
- → Spazio (Exclusive) · — · 7,100-13,000 gal — Largest rectangular in catalog
- → Sport (KS 350-700) · 8.2-10.5 ft wide · 2,100-6,900 gal — Purpose-built lap pool
- → Premium (KS 400-1000) · 6.9-13.5 ft wide · 1,600-11,400 gal — 8 length options, fits any yard

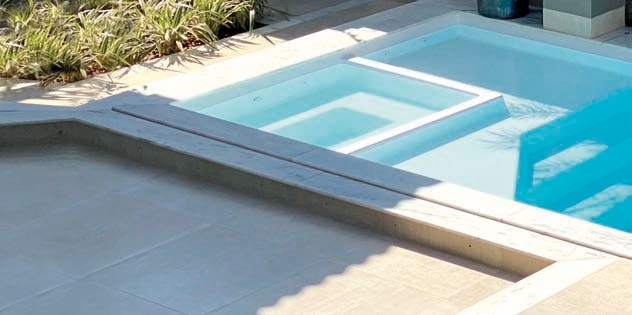

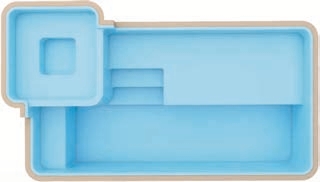

Pool + Spa Integrated Shells
A full hydrotherapy spa molded directly into the pool shell. Bubbles and jets for adults after dinner, open swimming for the kids in the afternoon, and year-round soak access when the pool itself is closed for the winter. Integrated spas also eliminate the expense and ugliness of a separate above-ground spa sitting next to the pool deck. Our most requested category for empty-nester upgrades in Overland Park, Leawood, and Lee\'s Summit, and a common spec on new Kansas City luxury builds.
- → Infinity Spa (KS 600-1000) · 9.9-11.5 ft wide · 3,700-8,500 gal — Most popular spa-integrated model
- → Mediterranea Spa (KS 500-800) · 9.8-11.5 ft wide · 3,300-7,400 gal — Freeform with spa
- → Piazza Spa (Exclusive) · — · 4,000-6,500 gal — Modern with spa
- → Passione Spa (Exclusive) · — · 3,000-6,600 gal — Pool-spa interaction
- → Florença (Exclusive) · — · 3,200 gal — Straight lines with heated spa
Ready to Start Your KC Pool Project?
Free on-site visit, scale drawings, and a written estimate — no obligation.

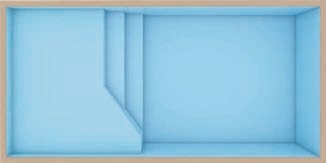

Beach Entry & Tanning Ledge Shells
Zero-depth walk-in entries and submerged sun shelves are the fastest-growing design trend in the Kansas City pool market. The zero-depth beach entry lets toddlers wade in without a single step, gives parents a safer shallow play zone to watch kids from, and reads as a resort-style detail that raises the whole backyard. The submerged tanning ledge — typically six to nine inches of water across a wide flat platform — lets adults lounge in partially submerged chairs right on the pool surface. Several shells in this category combine both features with an integrated spa.
- → Infinity Praia (KS 600-800) · 9.9-11.5 ft wide · 3,700-6,400 gal — Zero-depth beach entry
- → Spiaggia (Exclusive) · — · 4,700-8,700 gal — Extended tanning ledge across full width
- → Passione Praia (Exclusive) · — · 3,600-6,100 gal — Beach entry with spa
- → Veneza (Exclusive) · — · 10,100-10,700 gal — Bench + tanning ledge + integrated spa
- → Infinity Escada (KS 500-800) · 8.5-11.5 ft wide · 3,400-7,600 gal — Stepped entry with seating

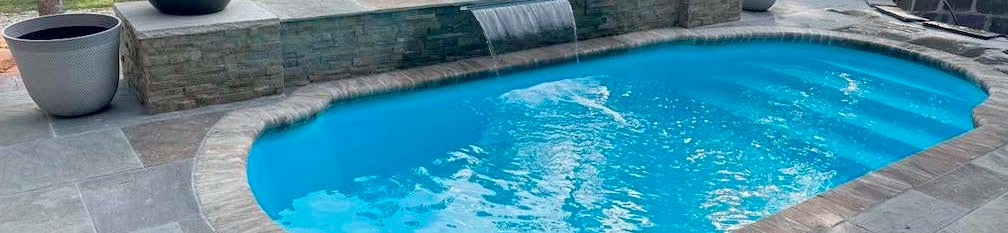

Classic & Freeform Shells
Organic curves, kidney shapes, and resort-style silhouettes designed to look like they belong in the landscape rather than imposed on it. Freeform shells pair beautifully with natural stone coping, flagstone deck inlays, and curved waterfalls. This is the category that defines the traditional Kansas City backyard pool aesthetic — soft edges, sloped entries, and the kind of shape that reads as welcoming rather than architectural. The Havaí and Mediterranea are our most-specified freeform shells for larger KC lots.
- → Havaí (KS 500-800) · 11.3-13.8 ft wide · 3,400-7,300 gal — Organic curved freeform
- → Mediterranea (KS 600-900) · 9.9-13.8 ft wide · 4,800-10,900 gal — Large freeform
- → Master (KS 380-800) · 6.9-11.5 ft wide · 1,100-6,900 gal — Classic kidney shape
- → Capri (Exclusive) · — · 3,400-6,100 gal — Unique organic shape
- → Curve 20 (Exclusive) · — · 4,000 gal — Traditional freeform
- → Sole (Exclusive) · — · 2,600-5,200 gal — Classic oval
- → Siena (Exclusive) · — · 2,800-5,300 gal — Rounded
Built by a Crew That Pours the Concrete on Top of It

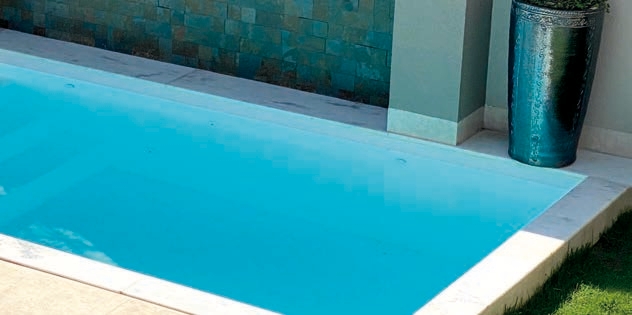

Elegance Custom Ceramic Line
The Exclusive Pools Elegance collection is the top of the catalog — architectural shells finished in imported Strufaldi ceramic tile instead of gelcoat. The ceramic finishes are available in seven colorways (Samoa, Palau, Kaimú, Mar, Jade, Safira, Lago) and carry a warranty and visual depth that no gelcoat shell can match. This is the line we spec for custom Leawood, Mission Hills, and Loch Lloyd estate projects, and for new-construction luxury builds where the pool is meant to function as an architectural feature rather than a backyard amenity. Pricing reflects the upgrade — Elegance installs generally run $75,000 to $100,000+.
- → Elegance Escada (EL 400-1000) · up to 33×11.5 ft · up to 10,700 gal — Stepped entry flagship
- → Elegance Praia (EL 600-1000) · up to 33×11.5 ft · — — Beach entry
- → Elegance Spa (EL 600-1000) · up to 33×11.5 ft · — — Integrated spa
- → Elegance Diamond / Retrô (EL 228-280) · — · 800-1,900 gal — Geometric modern designs
- → Elegance Transparent (EL 480) · — · — — See-through acrylic wall option
Standalone Spas & Kids Pools
Compact shells for yards where a full-size pool is not the goal. A standalone fiberglass spa gives you year-round hot-tub use without a rubber-and-wood portable unit sitting on your patio, and ties directly into a concrete deck the same way a full pool does. The Bambino kids pool is a complete, in-ground fiberglass shell engineered for toddlers and young children — safer, cleaner, and more permanent than an above-ground pool, and designed to be converted or removed as kids grow. These installs typically finish in two to three weeks.
- → Diamond spa (Exclusive) · — · 1,500 gal — Geometric compact spa
- → Luna spa (Exclusive) · — · 550-690 gal — Ultra-compact spa
- → Bambino kids pool (Exclusive) · — · 449 gal — Compact kids pool
How Your Kansas City Pool Gets Built — Step by Step
For a typical fiberglass install in the KC metro, this sequence runs 3–6 weeks of active work from excavation to first swim.
Free On-Site Consultation
Our team walks your yard, measures access routes for the crane and excavator, evaluates the soil and slope, and lays out the shell footprint with marking paint so you can see exactly where the pool will sit. We review the Kisol and Exclusive Pools catalogs in person and narrow the field to the two or three models that actually fit your lot and your lifestyle.
Design Selection & Permitting
You pick the final model, gelcoat color or ceramic tile finish, and deck configuration. Our crew files city building and pool permits, submits HOA architectural review packages where required, and schedules the rough and final inspections. Every piece of paperwork — Kansas City MO, Overland Park, Olathe, Lee's Summit, Leawood — is handled on your behalf.
Excavation
A typical Kansas City fiberglass dig produces 80 to 120 cubic yards of Wymore-Ladoga clay and takes one full day. Our crew over-excavates to account for seasonal clay movement, hauls the spoil off-site the same day, and sets a compacted gravel base leveled to manufacturer specification before the shell ever leaves the trailer.
Shell Delivery & Setting
Your shell arrives on a flatbed and is lifted into the hole by crane. Setting takes a few hours but it is the most important precision moment of the entire build. Our team levels the shell to within one-eighth of an inch and verifies alignment with a laser before any backfill goes in.
Plumbing & Equipment Installation
We trench and run suction, return, skimmer, and main drain lines out to the equipment pad. The pad itself is built with the pump, filter, sanitization system, and optional heater mounted and hard-plumbed to manufacturer specs. Every fitting is pressure-tested before it gets buried — no shortcuts, no surprises after the deck goes down.
Backfill & Compaction
Backfill happens in lifts with the rising water level inside the shell. Gravel is placed and compacted around the shell in stages so internal water pressure and external backfill pressure stay balanced through the entire process. The shell stays true — no bulging, no sagging, no lateral shift that shows up three summers later as a deck crack.
Concrete Pool Deck Pour
This is our specialty and the single reason Kansas City homeowners hire Kansas City Concrete Contractors over a pool-only builder. The same crew that set the shell forms, pours, and finishes the surrounding concrete deck. No handoff gap. No second mobilization. No waiting three weeks for a separate sub to schedule around his other jobs. Broom, stamped, exposed aggregate, stained, or cool deck — all finished in-house.
Electrical Hookup, Water Fill & Owner Orientation
Licensed electrician coordination for bonding and equipment pad wiring. Our team fills the pool, balances the chemistry, runs the system through startup, and walks you through every piece of equipment, weekly maintenance, and winterization. You finish the day with a printed care guide, manufacturer warranty registration, and a direct line to our crew.
Why Kansas City Pool Installation Is Harder Than Most Markets
The dominant soil under Jackson, Johnson, and Clay counties is the Wymore-Ladoga clay complex — classified CH (fat clay) and CL (lean clay) under the Unified Soil Classification System, with 60 to 80 percent clay content and a very high shrink-swell rating. That matters enormously for pool installation because a rigid gunite shell cracks when that clay expands and contracts seasonally. A fiberglass shell flexes with the soil, but it still has to sit on a properly engineered gravel base with staged backfill, or seasonal movement will show up as deck separation eighteen months after the install.
Kansas City also sits on a 30 to 36 inch frost line. Any pool deck, plumbing trench, or equipment pad foundation that is not designed around that frost depth will heave every winter and crack the concrete above it. Our deck pours are always isolated from the shell with proper expansion joints, and plumbing runs are insulated where they cross from the shell to the equipment pad. We also handle freeze-thaw drainage around the shell itself — a detail most pool-only builders skip because it is technically the concrete sub\'s problem.
The KC metro spans two states, and permit paths are completely different on each side of the state line. Missouri pool permits go through the city building department (Kansas City MO, Independence, Lee\'s Summit, Liberty). Kansas permits run through Overland Park, Olathe, Lenexa, and Shawnee independently, each with its own fee schedule. HOAs layer on top of all of it, and most KC metro HOAs require a full architectural review package before the city will even open a permit file. Finally, the KC swim season runs roughly May through September — about 120 workable days — which is why smart owners sign contracts in January to February to be swimming by Memorial Day.
- Frost Depth
- 30–36 inches — KC metro
- KC Clay Type
- USCS: CH / CL
- Wymore-Ladoga complex
- KC Swim Season
- ~120 days
- Late May – mid September
- Shell Excavation
- 80–120 CY typical
- Standard Install
- 3–6 weeks dig to swim
- Shell Warranty
- 15 years structural
- ICC-ES PMG certified
Shell Settlement
Improper gravel base or skipped lift compaction lets the shell settle unevenly after backfill. Shows up as deck gaps and visible shell tilt within the first year.
Deck Cracking
The deck sub pours around a shell they never set, skips expansion joints, and uses the wrong thickness over KC clay. Cracks open at the coping within two summers.
Permit Delays
HOA review missed, city paperwork incomplete, or electrical permit filed late. Pushes the entire project out of the KC swim window and into the next season.
Gelcoat & Ceramic Tile Finishes
Gelcoat is the standard factory finish on every Kisol Fiberglass Pools shell and is available in white, blue, and grey. It is non-porous, algae-resistant, and warrantied against osmotic blistering — the right choice for 80 percent of Kansas City installs because it delivers the lowest total cost of ownership and the widest color availability. Ceramic tile finishes from the Strufaldi line are exclusive to the Elegance Custom Ceramic collection, and they replace the gelcoat layer with imported Italian ceramic bonded to the shell at the factory. Ceramic delivers a deeper color, a harder surface, and the architectural look of a tiled gunite pool — at a premium typically 25 to 40 percent above the equivalent gelcoat shell. Choose ceramic when the pool is meant to read as a design feature rather than a recreational amenity.
How Much Does Fiberglass Pool Installation Cost in Kansas City?
| Scope | Typical Kansas City Range |
|---|---|
| Pool Shell (Kisol or Exclusive Pools, varies by model) | $25,000–$65,000 |
| Excavation, Backfill & Compaction (80–120 CY) | $5,000–$12,000 |
| Plumbing, Equipment Pad & Sanitization | $4,000–$8,000 |
| Concrete Pool Deck (broom to stamped, 400–800 sq ft) | $4,800–$14,400 |
| Electrical Hookup & Bonding | $2,000–$4,000 |
| Permits, Inspections & SWPPP (if required) | $500–$2,000 |
| Total Installed Range | $45,000–$100,000+ |
Total installed cost depends on four primary variables: the shell you choose (Slim and Master are the budget end, Elegance ceramic tile is the top), the complexity of excavation (flat backyards with good access are cheapest, sloped lots and tight access run higher), how much concrete decking wraps the pool (400 square feet is a tight patrol; 800 to 1,200 square feet is a full entertaining deck), and whether stamped, stained, or exposed aggregate finishes are specified. Every Kansas City estimate we provide breaks these costs out as discrete line items so you can see exactly where the dollars go and make informed trade-offs before the contract is signed.
Pool Installation Across the Kansas City Metro
What Kind of KC Pool Project Is Yours?
First-Time Family Install
Young family adding their first backyard pool — typically a beach entry or mid-size rectangular.
Empty-Nester Upgrade
Backyard transformation after the kids leave — often a Pool + Spa combo with premium decking.
Lake Community Second Pool
Weekend property or lake-community second home looking for a compact, low-maintenance shell.
Custom Estate Build
High-end Leawood, Mission Hills, or Loch Lloyd property built around the Elegance ceramic tile line.
Compact Lot Install
Narrow urban or infill lot where the Slim or Slim Spa is the only shell that fits the footprint.
Replacement Install
Replacing an aging gunite or vinyl-liner pool with a modern fiberglass shell and new concrete deck.
Beach Entry Family
Zero-depth entry, submerged tanning ledge, and a shallow play area for toddlers through teens.
Lap & Sport Build
Serious swimmers or triathletes who need a Sport shell or long-configuration Premium for daily laps.
Ready to Start? Get a Free On-Site Visit.
Tell us about your backyard, your lifestyle, and roughly when you want to be swimming. Our team will schedule a free on-site visit, walk the yard, lay out the shell footprint with marking paint, and follow up with scaled drawings and a written line-item estimate — no pressure, no obligation.
- ✓Free on-site consultation and scale drawings
- ✓Line-item estimate: shell, dig, plumbing, deck, electrical, permits
- ✓HOA and city permit packages filed on your behalf
- ✓One contractor, one contract, dig to deck to first swim
Start Your Estimate Request
Click below to open the estimate request form. Share your address, a few details about your backyard, and the shell category you are leaning toward — our team will respond within one business day to schedule the site visit.
Pool Installation FAQ for Kansas City
How much does fiberglass pool installation cost in Kansas City?
How long does fiberglass pool installation take?
Why fiberglass instead of gunite or vinyl liner?
When is the best time to install a pool in Kansas City?
What about Kansas City clay soil — can it support a fiberglass pool?
Do I need a permit for a pool in Kansas City?
Which pool model is right for my yard?
Do you handle the concrete deck too?
What about HOA approval?
What kind of warranty comes with the pool?
Explore the Rest of What We Do
Pool Decks
Stamped, broom, and exposed aggregate concrete decking around new and existing pools.
Concrete Patios
Outdoor living patios, fire pit pads, and entertaining spaces across the Kansas City metro.
Stamped Concrete
Slate, flagstone, brick, and wood-plank stamped finishes for pool decks and patios.
Sitework
Commercial excavation, grading, utility trenching, and sub-base for KC metro projects.
Ready to Start Your Kansas City Pool Project?
Dig to deck, one contractor, one contract, one warranty. Free estimate on your backyard.
